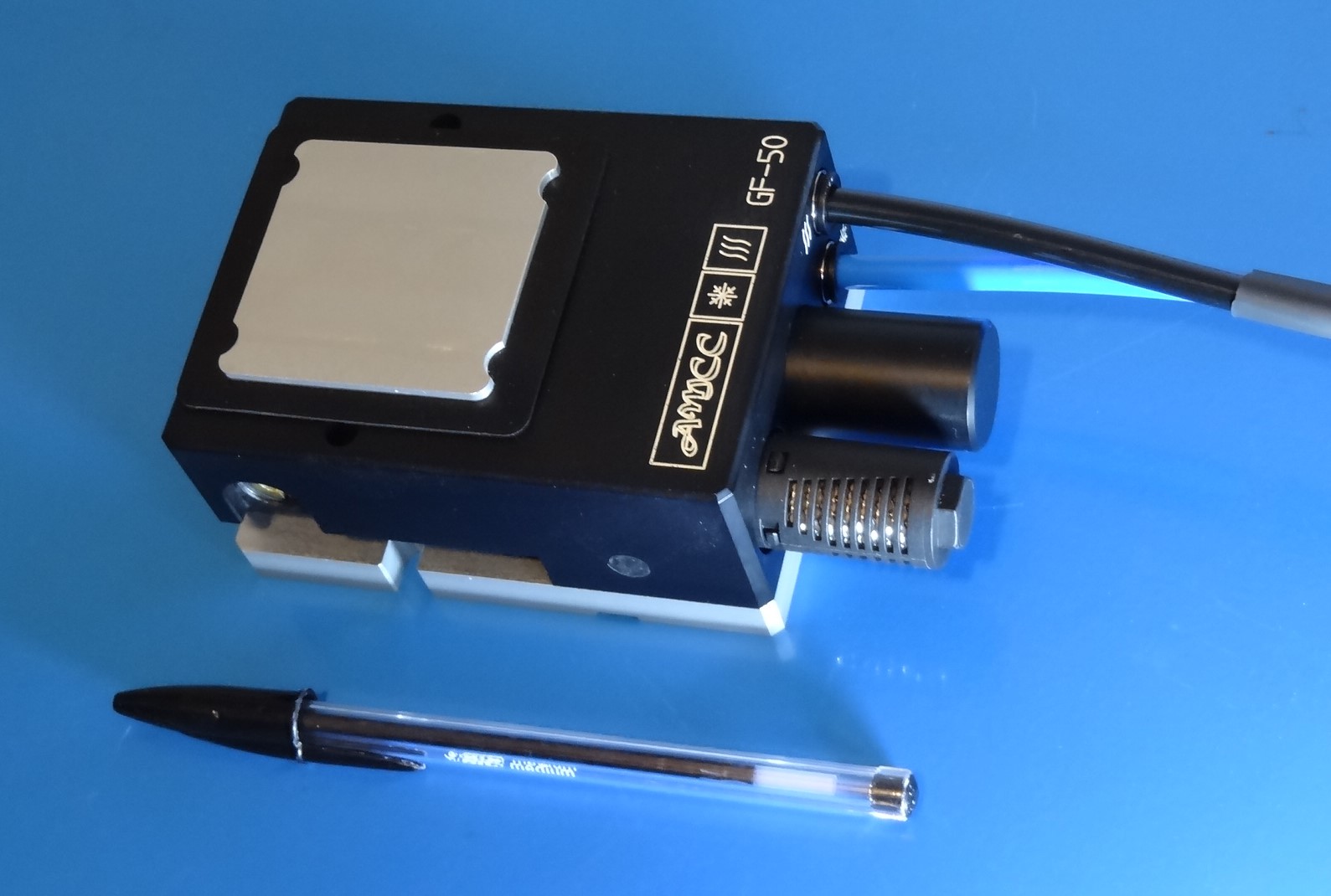

GF-50×50

  • Clamping surface 50×50 mm
  • Overall dimensions: 205x95x45 mm
  • Milling – Grinding – Diamond cutting
  • Removable freezing plate (¹)
  • 2 steel shims for securing onto magnetic grinder plate. (option)

Demonstration Data sheet






GF-150-M M for Modulable

  • Clamping surface: 152×102 mm
  • Overall dimensions: 256x102x65 mm
  • Milling – Grinding
  • Diamond dressing
  • Removable icing plate (¹)
  • Steel shims for securing on magnetic plate(optional)
  • Each removable plate can be adapted to a particular machining process and thus dedicated to a set of parts

Demonstration Data sheet





GF-250

  • Clamping surface: 250×150 mm (ext. dim.367x164x73)
  • Milling – Grinding – Diamond dressing
  • Fixed icing plate
  • Locating holes for “X Y” positioning of templates (optional)
  • “Z” reference non-freeze key (optional)
  • Steel shims for securing on magnetic plate (optional)

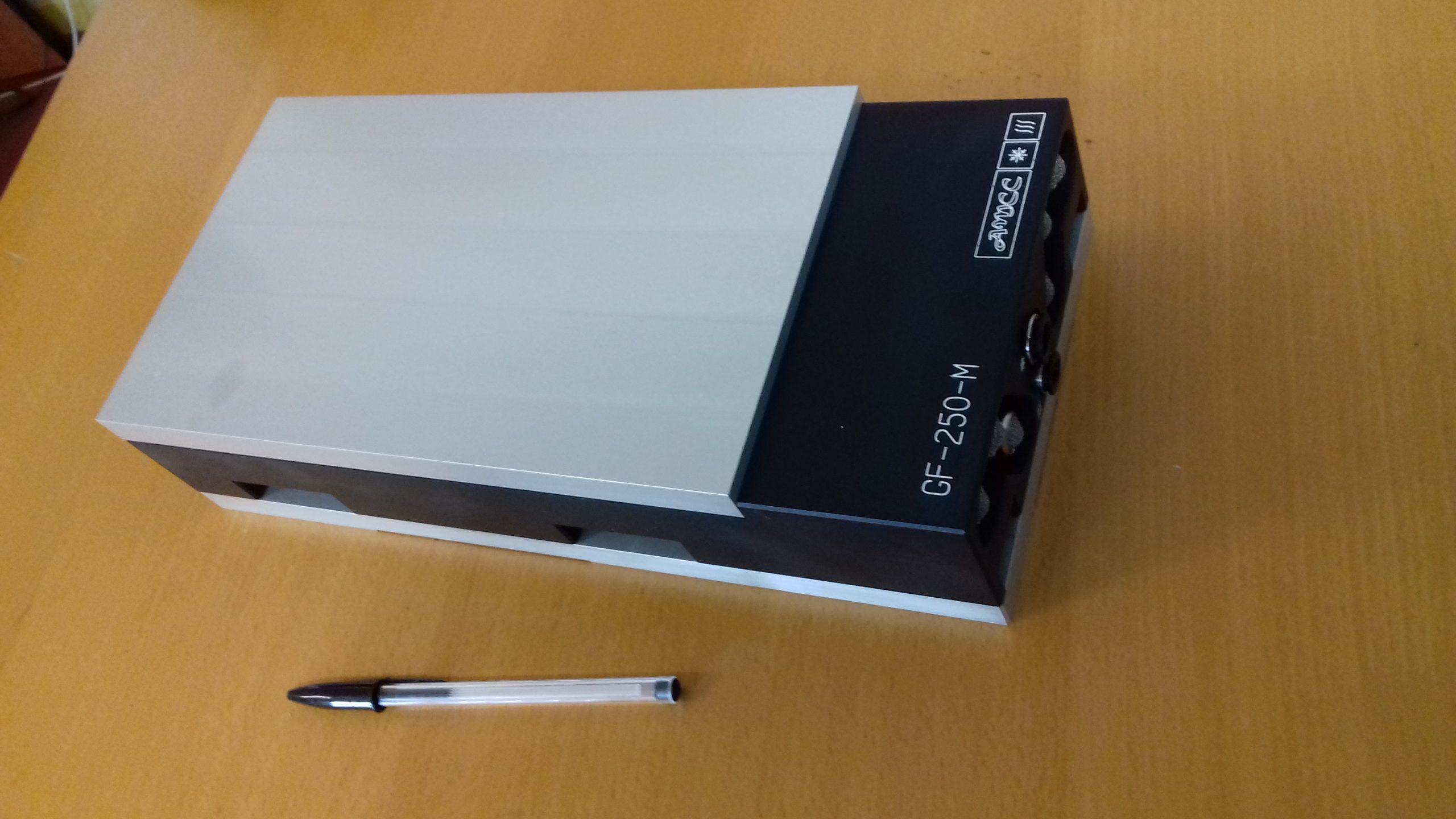

GF-250-M in development

Data sheet





GFR-55

  • Clamping surface: Ø 55 mm (ext. dim. 208x60x29)
  • Lathing, 5 axis milling
  • Dividing plate
  • Removable icing plate (¹) These plates can be adapted to various manufacturing processes and become actual tools.

Data sheet


(¹) Patented systems
